Leica Ezicat i650xf CAT & t300xf Signal Generator | Refurbished Long-Distance Utility Locator
You save £865.00 (60%)

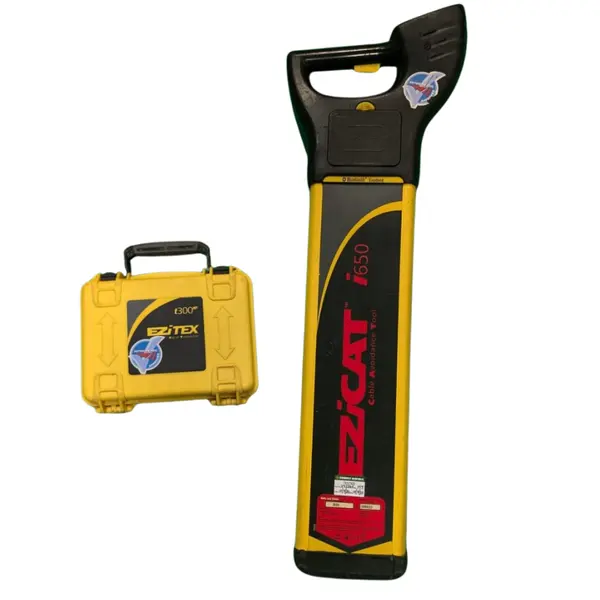

The Refurbished Leica EZiCAT i650xf is a robust, intelligent cable avoidance tool designed for precision utility tracing over extended distances. This kit includes the powerful t300xf Signal Generator, which provides a 3-Watt output and specialized lower frequencies. The system features Automatic Pinpointing, eliminating the need for manual sensitivity adjustments, and is fully Network Rail approved for complex site environments.
What are the technical benefits of the i650xf multi-frequency modes?
The i650xf includes specialized low frequencies of 512Hz and 640Hz, which are specifically designed to enable efficient tracing of buried utilities over significantly longer distances. In addition to these, it supports standard 8kHz and 33kHz modes, along with Power, Radio, and Auto detection settings.
How does the i650xf manage data logging and safety compliance?
This unit features fully integrated data logging capability that records how and when the locator is used on-site. Data can be transferred via Bluetooth to LOGiCAT software, providing critical traceability following utility strikes or for identifying specific operator training needs.
What specific utility types can be detected with this system?
The i650xf kit is capable of detecting electricity cables, data/telecoms lines, and conductive pipes made of steel or cast iron. When used in conjunction with EZiSYSTEM accessories, it can also trace non-conductive pipes such as clay or concrete.
| Model | Leica EZiCAT i650xf with t300xf |
| Signal Generator Output | 3 Watt |
| Frequency Modes | Power, Radio, Auto, 8kHz, 33kHz, 512Hz, 640Hz |
| Connectivity | Bluetooth Integrated Data Logging |
| Core Features | Depth Estimation, Hazard Zone, Pinpoint Assist, Service Due Indicator |
| Certification | Network Rail Approved |
| Maintenance | 12 Months Calibration and 12 Month Warranty included |
Compatible Accessories
- Extend detection capabilities for non-conductive pipes with the Leica EZiROD 50 Flexible Tracing Rod.
- Trace utilities over larger distances using the Leica EZiROD 80 Flexible Tracing Rod.
- Detect standard drains and sewers with the Leica Midi Sonde 8kHz and 33kHz.
- Apply signals to specific pipes using the Leica 4" Transmitter Clamp.
- Ensure continuous operation with a spare Leica Li-ion Battery Pack.
- Protect your equipment with a dedicated Leica System Carry Bag.
