Vivax D18 Sonde | 33kHz Transmitter | 18.5mm Micro Underground Tracing

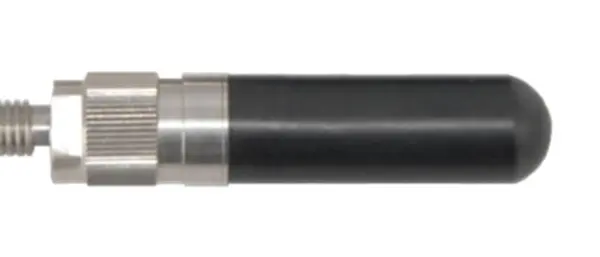

The Vivax D18 Sonde with M10 Stud End Cap is a specialized underground transmitter engineered for high-accuracy utility location within restricted environments. Measuring only 18.5mm in diameter and 92mm in length, this sonde is specifically designed to traverse small-diameter non-metallic pipes and conduits where standard tracing equipment cannot navigate.

What is the maximum detection depth of the Vivax D18 Sonde?

The D18 Sonde provides a significant detection depth range of up to 4.5 meters (15 feet). This ensures reliable signal transmission to the receiver through varying soil compositions and pipe depths during tracing operations.

Is the D18 Sonde compatible with metallic piping systems?

No, this sonde is specifically optimized for use in non-metallic pipe material to ensure signal integrity. Tracing in metallic environments would cause signal shielding, making this device ideal for plastic, clay, or concrete conduits.

How is the D18 Sonde attached to rodding equipment?

This model features a robust M10 Stud End Cap, providing a secure threaded connection point. This design allows for stable attachment to a variety of industrial rodding and pushing systems used in utility maintenance.

Frequency	33kHz
Diameter	18.5mm
Length	92mm
End Cap Type	M10 Stud
Depth Range	4.5 Meters (15 Feet)
Material Suitability	Non-Metallic Pipe
