Radiodetection Noggin 500 Unit | GPR Sensor | High-Resolution Subsurface Mapping

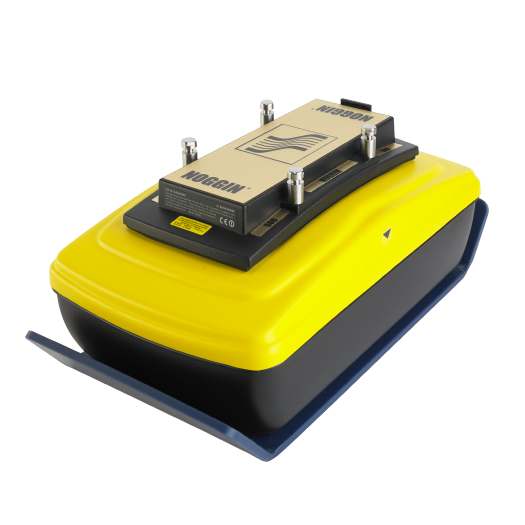

The Radiodetection Noggin 500 Unit is a precision-engineered ground penetrating radar (GPR) sensor designed for professional subsurface surveying. Operating at a 500 MHz center frequency, it provides an optimal performance profile for mapping various subsurface objects and materials across diverse environments.

What are the primary applications for the 500 MHz frequency?

The 500 MHz frequency is specifically chosen to provide a high-resolution view of buried objects while maintaining significant signal penetration. This makes it an ideal solution for locating utilities, mapping environmental features, and performing archaeological surveys.

How does the Noggin 500 balance depth and resolution?

This sensor is engineered to minimize the typical trade-off between clarity and depth, offering high-fidelity data at mid-range distances. It allows surveyors to detect smaller targets that lower-frequency units might miss without sacrificing the reach required for common utility depths.

Is the Noggin 500 Unit compatible with external display systems?

Yes, this sensor is designed to integrate seamlessly with the DVL-500 display and various mobile configurations. It supports data output for advanced processing, ensuring that subsurface findings are recorded with maximum accuracy.

Specification	Value
Center Frequency	500 MHz
Primary Function	Subsurface Mapping
Target Material	Subsurface objects and materials
Performance Profile	Balanced depth and resolution

• Noggin Display (DVL-500)
• Noggin 500 SmartCart Configuration
• Noggin 500 Odometer with Bracket
• DVL to Noggin SmartCart Cable with Latches
• Noggin/pulseEKKO Power Source with Case
