Radiodetection Noggin 1000 SmartHandle System | High-Resolution GPR | Confined Space Utility Mapping

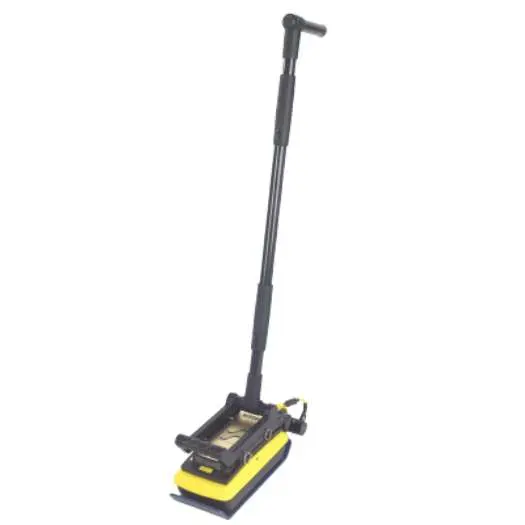

The Noggin 1000 SmartHandle System is an ultra-high-resolution ground penetrating radar (GPR) solution engineered specifically for navigating confined and restricted workspaces. By integrating a powerful 1000 MHz NOGGIN sensor with the specialized SmartHandle interface, this system enables operators to perform detailed subsurface investigations where traditional cart-based GPR units cannot operate.

How does the 1000 MHz sensor improve subsurface data?

The 1000 MHz NOGGIN sensor provides the highest resolution available in the Noggin series, allowing for the detection of very small or shallow targets. This frequency is essential for applications requiring maximum precision, such as concrete imaging or shallow utility detection in confined spaces.

What makes the SmartHandle system suitable for vertical surveys?

The SmartHandle is a lightweight, ergonomic attachment that allows the sensor to be manually guided across surfaces. Its compact and portable design makes it the primary choice for performing vertical and overhead surveys on walls, columns, or ceilings.

Can this system be used in confined spaces?

Yes, the system is specifically optimized for challenging environments where maneuverability is restricted. Its compact form factor ensures that high-quality subsurface data can be acquired in tight areas without sacrificing accuracy or reliability.

Accessories & Integrated Components

• Core GPR Unit: Noggin 1000 Unit
• Display Interface: Noggin Display (DVL-500)
• Connection Cable: Noggin SmartHandle Cable (2.5m) with Latches
• Distance Measurement: Noggin 1000 Odometer with Bracket
• Long-Range Connectivity: Noggin SmartHandle Cable (10m) with Latches
