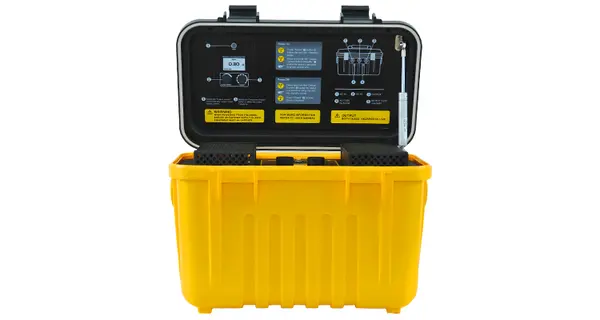

Loc3-150Tx 150-watt Transmitter
Key Features of the Loc-150Tx Transmitter
- External Power Compatibility: Powered by CP stations, AC, or external batteries for continuous operation.
- Comprehensive Alarms: Features over voltage, power, and temperature alarms for enhanced safety and reliability.
- Durable Construction: Housed in high-impact ABS plastic for robust field performance.
- Precision Locating: Identifies coating defects and faulty insulation joints with selectable frequency range.
- Versatile Use: Effective as both a defect mapper and long-line pipeline locator.
Package Contents | Loc-150Tx Transmitter includes:
|
---|
The Loc-150Tx, a 150-Watt DM Transmitter, represents a pinnacle of utility locating and defect mapping technology. Engineered for compatibility with the Defect Mapper (DM) Receiver, it stands out for those in need of a low frequency, high output transmitter for detailed pipeline integrity assessments. The Loc-150Tx excels in applying signal currents for anode bed testing and tracing coating faults along pipelines, proving indispensable in comprehensive pipeline maintenance and inspection tasks.
Key Features of the Loc-150Tx Transmitter
- Designed for Power: Operates on external power sources including CP stations, AC, or external batteries, negating the need for internal battery dependency.
- Focused Frequency Range: Features selectable direct connection frequencies from 98Hz to 512Hz (640 Hz in Europe), tailored for precise defect location and pipeline tracing.
- Robust and Reliable: Encased in high-impact ABS plastic, ensuring durability and longevity in challenging field conditions.
- Advanced Monitoring: Equipped with a two-inch by one-inch dot matrix display with LED backlight for real-time monitoring of output current, volts, frequency, and system warnings.
- User-Friendly Interface: Two rotary/push control knobs allow easy navigation through frequency selection, output level adjustments, and operational modes.
The Loc-150Tx Transmitter is uniquely positioned to support professionals in identifying coating defects and faulty insulation joints, as well as serving as a long-line pipeline locator. Its direct connection mode ensures that the locate frequency is efficiently applied onto the conductor, offering a straightforward approach to complex locating tasks.
Whether it's for detailed defect mapping or long-distance pipeline locating, the Loc-150Tx Transmitter is supplied with all necessary leads for direct connection, DC input, and AC mains operation, making it a versatile tool for field professionals.
Loc3 150 Watt Transmitter Features Overview
Specification Category | Details |
---|---|
Construction | High impact ABS injection molded housing |
Weight and Dimensions | 9.9 lbs, 13.1in(L) x 7.2in(W) x 7.3in(H) |
Display | 2.4in x 1.3in (60mm x 32mm) Monochrome-dot-matrix graphic LCD display with LED backlight |
Environmental Protection | IP54 and NEMA 4 |
Battery Options | Supplied with 12 x D cell alkaline batteries; Optional Li-ion rechargeable battery tray with charger |
Battery Life | Alkaline: 1 watt - 25 hours, 5 watt - 6 hours, 10 watt - 4 hours; Li-ion (Rechargeable): 1 watt - 50 hours, 5 watt - 10 hours, 10 watt - 6 hours |
Operating Modes | Induction mode, Direct connection mode, Clamp mode |
Output Protection | Protected against accidental momentary connection to up to 240V AC |
Operating Frequencies | Induction - Available frequencies between 98Hz and 200kHz; Direct Connection - Available frequencies between 98Hz and 200kHz; Clamp - Frequencies between 8kHz to 131kHz |
Loc-150Tx Transmitter includes:
- AC Lead
- DC Lead
- Direct Connection Leads
