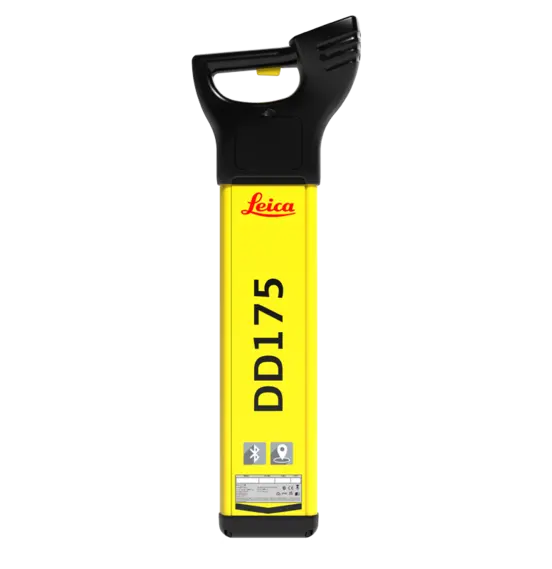

Leica DD175 Locator
Leica DD175: Redefining Utility Detection
- User-Centric Design: Intuitive design with advanced automatic controls ensures an enhanced user experience.
- Seamless Communication: Connects to Leica DX Field Shield/DX Manager Shield software for real-time data transfer, bridging the gap between the field and office.
- Precision at its Best: Automated pinpointing technology and clear display to identify buried utilities confidently.
Package Contents |
|
---|
Meet the Leica DD175, the latest addition to Leica Geosystems' utility detection solutions. This state-of-the-art utility locator is designed to simplify the complex task of detecting underground utilities, thereby increasing site safety. The Leica DD175 is a smart utility locator that connects to Leica DX Field Shield/DX Manager Shield software, enabling real-time data transfer between the site and the office. With automated pinpointing technology and a clear display, the DD175 helps you discover buried utilities with confidence.
Key Features
Intuitive Design and Advanced Automatic Controls
The Leica DD175 features an intuitive design that enhances the user experience and advances automatic controls for simplified utility detection. Its built-in self-check verifies that the tool is functioning properly, ensuring the dependability of the information and enhancing operator safety.
Real-Time Data Transfer and Connectivity
The DD175 connects to the Leica DX Field Shield/DX Manager Shield software, enabling users to connect the site to the office in real time with fast and stable data transfer. This feature allows for better decision-making and enhances the efficiency of utility detection operations.
Automated Pinpointing Technology
The DD175’s automated pinpointing technology and clear display help users discover buried utilities with confidence. This feature minimizes the likelihood of human error, even for less skilled professionals, making utility detection easier and more efficient.
Data-Logging and GPS Features
The tool’s data-logging and GPS features allow managers to see how and where the locator is used, providing valuable insights into the utility detection process and ensuring optimal usage.
Business Use Cases
- Construction Companies
- Civil Engineering Firms
- Utility Management Companies
- General Site Workers
- Environmental Consultancies
Conclusion
The Leica DD175 Locator is not just another utility detection device; it's a comprehensive solution designed to meet the challenges of modern utility detection. With its advanced automatic controls, real-time data transfer capabilities, and automated pinpointing technology, the Leica DD175 sets a new standard in utility detection and site safety.
Feature | DD120 | DD130 | DD175 |
---|---|---|---|
MODE | |||
Power | 50Hz / 60Hz model | 50Hz / 60Hz model | 50Hz / 60Hz model |
Radio | 15kHz - 60kHz | 15kHz - 60kHz | 15kHz - 60kHz |
Auto | Power, Radio, 33kHz | Power, Radio, 33kHz | Power, Radio, 33kHz |
Transmitter Modes | |||
32.768 (33) kHz | ✓ | ✓ | ✓ |
8.192 (8) kHz | ✓ | ✓ | ✓ |
512 Hz | ✓ | ✓ | ✓ |
640 Hz | ✓ | ✓ | ✓ |
Depth Range | |||
Line | 0.3m to 3m / 1ft to 10ft | 0.3m to 3m / 1ft to 10ft | 0.3m to 3m / 1ft to 10ft |
Sonde | 0.3m to 3m / 1ft to 10ft | 0.3m to 9.99m / 1ft to 32.77ft | 0.3m to 9.99m / 1ft to 32.77ft |
Depth Accuracy* | 10% | 10% | 10% |
Environmental Standard | IP54 | IP54 | IP54 |
Operating Temperature | -20° C to +50° C -4° F to +122° F | -20° C to +50° C -4° F to +122° F | -20° C to +50° C -4° F to +122° F |
Battery | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline |
Battery operating time | 15 h | 15 h | 15 h |
Dimensions (HxWxD) | 760 x 250 x 85mm (30 x 10 x 3.4 inches) | 760 x 250 x 85mm (30 x 10 x 3.4 inches) | 760 x 250 x 85mm (30 x 10 x 3.4 inches) |
Weight with batteries | 2.7Kg 5.95 lbs | 2.7Kg 5.95 lbs | 2.7Kg 5.95 lbs |
Internal Data Storage | X | X | ✓ |
Data Logging | X | X | ✓ |
GPS | X | X | ✓ |
Bluetooth | X | X | ✓ |
- DD120 Locator by Leica
- 1 year warranty
- Alkaline batteries
- User manual
