Dart Drain 507-22mm | 20m Fixed Inspection Camera | 22mm Stainless Steel Head

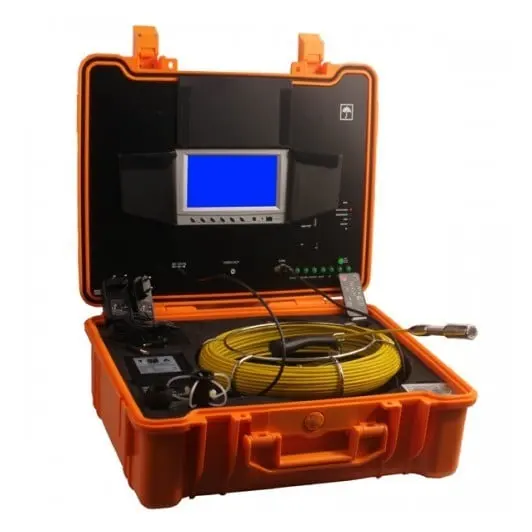

The Dart 22mm x 20m Fixed Drain Inspection Camera System is a professional-tier, all-in-one diagnostic tool housed in a high-impact industrial case. Designed for rigorous field use, this system integrates real-time video monitoring, recording, and playback capabilities into a single portable unit. The 20m fiberglass cable is paired with a resilient 22mm stainless steel camera head, providing the durability required for navigating complex residential and commercial drainage networks.

What are the recording capabilities of the Dart 507-22mm?

This system supports high-versatility recording, allowing footage to be captured directly onto a USB memory stick or a Micro SD Card with capacities up to 32GB. Furthermore, it features a Video Out facility for external media player integration and includes specialized CODEC software for PC-based video analysis.

How is the Dart inspection system powered during field operations?

To ensure maximum flexibility, the system utilizes dual power sources, operating on either a 12V rechargeable battery included in the kit or via a standard UK plug adapter. This redundancy allows for continuous operation in both remote locations and sites with available mains power.

What makes the camera head suitable for industrial drainage environments?

The system is equipped with a 22mm fixed camera head constructed from stainless steel and mounted on a high-tension spring. This configuration ensures superior protection against corrosive elements while maintaining the flexibility needed to traverse standard pipe bends and junctions.

Accessories and Compatible Systems

• For inspections in smaller diameter pipes, consider the Dart 12mm x 20m Fixed Inspection Camera System.
• For advanced surveying requirements, the Dart DX Self-Levelling Drain Inspection Camera System provides upright image orientation.
• Compact inspection needs are met by the Mini DartEye S/L Drain Inspection Camera System.
• Standard pole-based visual assessments can be performed using the Dart DS100 Telescopic Pole Camera.
