Witson 13.5mm Fixed Head Drain Inspection Camera
SKU: 507-172
In Stock
New

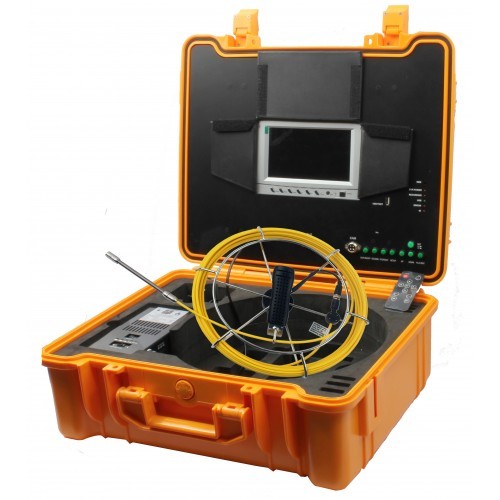

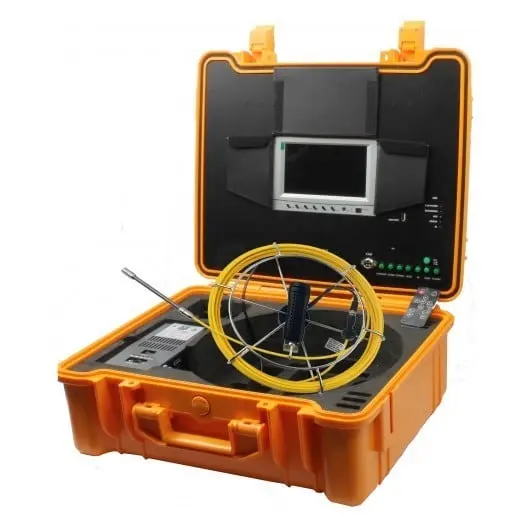

The Witson 13.5mm fixed-head camera is a case-mounted system for inspecting approximately 15–25mm pipework. Select the required push-rod length before ordering.
Secure checkout
The Witson 13.5mm fixed-head camera is a case-mounted system for inspecting approximately 15–25mm pipework. Select the required push-rod length before ordering.
Specifications
| Camera head | 13.5mm, fixed view |
|---|---|
| Suggested pipe diameter | approximately 15–25mm |
| Camera resolution | 800 TV lines |
| Viewing angle | 60 degrees |
| Lighting | 8 LEDs |
| Push rod | 20m or 40m fibreglass |
| Display | 7-inch TFT LCD; 800 x 480 pixels |
| Recording | USB drive or Micro SD card, up to 32GB |
| Camera housing | Stainless steel with sapphire lens cover |
| Power | Rechargeable 12V battery; mains power option |
| Supplied features | Remote-control handset and protective storage case |
Choosing this system
This model has a fixed camera head. It does not provide the upright-image function of the separate self-levelling model. Choose the dedicated 512Hz sonde version if camera-head location is required. Pipe bends, access and condition affect suitability.
Compare Rausch drain cameras and Witson inspection cameras, or contact us to confirm the right equipment and configuration.
