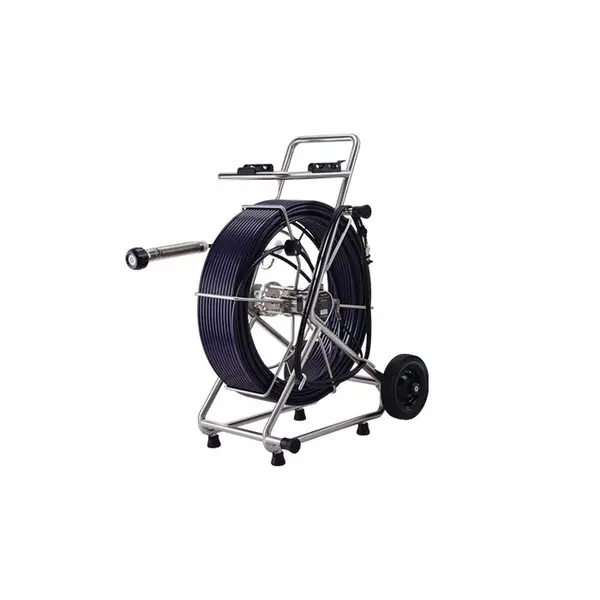

Vivax Type-CP Reel | 120m x 12mm Pushrod | Enhanced Camera Flexibility
The Vivax Type-CP Reel is a high-performance solution for professional drain and pipe inspection, engineered to provide an extensive 120m (400ft) reach. Utilizing a 12mm pushrod with a specialized short termination, this reel is specifically optimized to enhance the flexibility and cornering capabilities of the camera head in restrictive environments. Built with a rugged stainless-steel tubular frame and stainless hardware, it is designed to withstand the rigors of daily field use while maintaining an IP54 water resistance rating.
How does the short termination benefit pipe inspections?
The short termination design provides increased flexibility at the camera connection point, allowing D34/D46 cameras to navigate tight bends and complex pipe junctions more effectively than standard terminations. This makes the Type-CP reel ideal for long runs where camera flexibility is the critical factor for success.
Is the Type-CP Reel compatible with existing Vivax vCam systems?
Yes, this reel is fully compatible with vCam-6 and vCam-5 systems and includes the required interconnect cable as part of the package. It serves as a upgrade for operators needing greater reach and specialized maneuverability for professional drain work.
What are the physical and durability specifications for this reel?
The reel weighs approximately 79 lbs. (36kg) and features a high-durability construction involving stainless steel hardware. Its IP54 water-resistance rating ensures reliable performance in damp conditions encountered during industrial pipe surveys.
| Pushrod Length | 120m (400ft) |
| Pushrod Diameter | 12mm |
| Termination Type | Short Term |
| Environmental Rating | IP54 |
| Frame Construction | Stainless-steel tubular frame |
| Weight | Approx. 79 lbs. (36kg) |
| System Compatibility | vCam-6 and vCam-5 |
Accessories & Compatible Components
- Connect your reel to the vCam-6 Control Module for high-definition reporting and recording.
- Optimize viewing angles during inspection with the Vivax Rotate and Tilt Table.
- Standardize your setup with a replacement Vivax D34-HD Camera Head for precision imaging.
- Ensure compatibility with the larger Vivax D46-HD Camera Head for high-diameter pipe inspections.
- Maintain your equipment with the Vivax Type-CP Standard Reel Drip Bag.
