Vivax vCam-6 Type-CP Reel | D46-HD 1080p Camera | 60m Heavy-Duty 12mm Pushrod

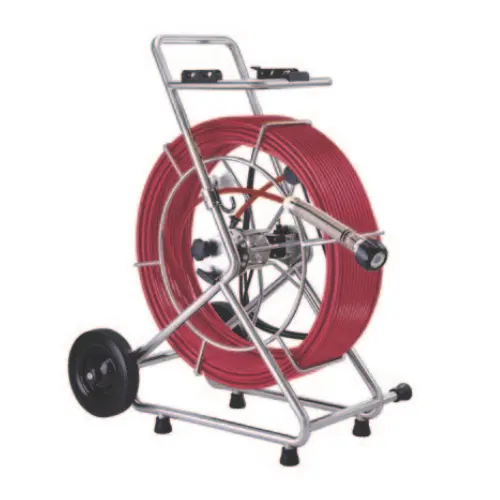

The Vivax-Metrotech vCam-6 Type-CP reel is a high-performance industrial inspection tool configured with 60m (200ft) of heavy-duty 12mm pushrod. This system is purpose-built for high rigidity, allowing for efficient navigation through larger drain lines while maintaining a stable 1080p HD image through the integrated self-leveling camera technology.
Which pipe sizes are compatible with this vCam-6 reel?
This reel is specifically optimized for inspecting larger pipes and drains ranging from 4 inches to 8 inches (101mm to 203mm). The D46-HD camera head provides a wide 96° field of view, ensuring comprehensive visual coverage within these pipe diameters.
What are the technical advantages of the D46-HD camera?
The D46-HD head features a 46mm (1.8") diameter and integrated self-leveling functionality to keep the image upright during transit. It captures video in full 1080p resolution, offering professional-grade clarity for identifying structural defects or blockages.
What components are required for operation?
This unit is a reel component and must be paired with a vCam-6 control module (sold separately) to view and record data. The package includes an interconnect cable to facilitate the connection between the Type-CP reel and the control module.
| Reel Type | Type-CP Standard Reel |
| Pushrod Length | 60m (200ft) |
| Pushrod Diameter | 12mm Heavy-Duty |
| Camera Model | D46-HD (Self-leveling) |
| Camera Diameter | 46mm (1.8") |
| Resolution | 1080p HD |
| Field of View (FOV) | 96° |
| Pipe Range | 4" to 8" (101mm to 203mm) |
| Termination | Standard Termination |
- Required: vCam-6 Control Module
- Connection: Interconnect Cable (12ft/4M)
- Protection: Vivax Type-CP Standard Reel Drip Bag
- Stability: Rotate and Tilt Table
- Centering: Vivax D46-HD Guide Skid (76mm)
