Schonstedt Spot Magnetic Locator
Icon | Label | Download |
---|---|---|
Spot Brochure | Download |
Spot Locator Key Features
- High Accuracy: Engineered for precision, offering high accuracy in utility locating.
- Cost-Effective: Provides a high level of accuracy and versatility at a lower cost.
- Rugged and Durable: Designed to withstand the toughest field conditions.
Package Contents |
|
---|

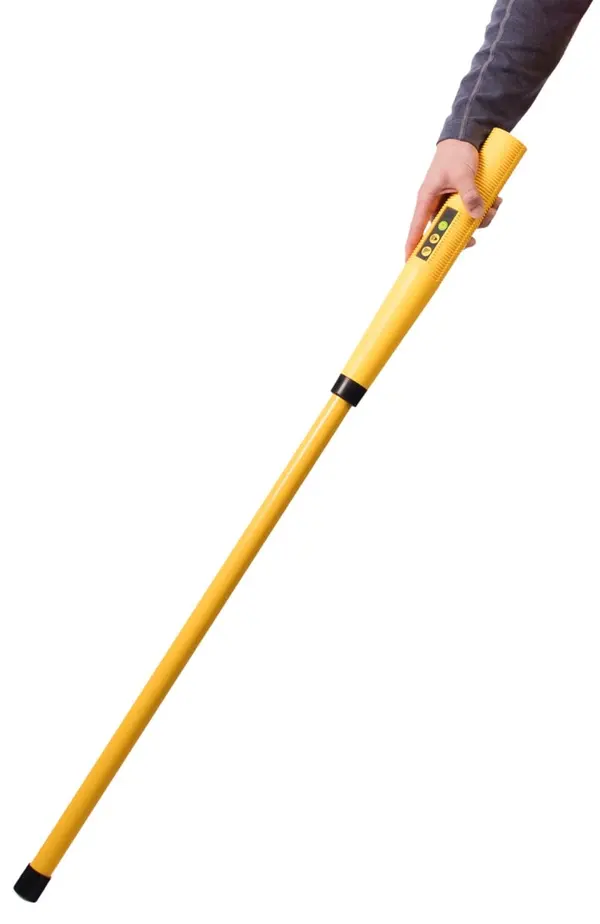

In the evolving world of utility locating, the Spot Locator by Schonstedt sets a new standard. Designed with the same level of precision and reliability as the well-known GA-52Cx, the Spot Locator offers a sleek, ultra-lightweight package with improved ergonomics. Whether you're locating survey pins, markers, nails, water and gas valves, manhole covers, or other deep iron/steel objects, the Spot Locator has you covered.
Why Choose Spot Locator
The Spot Locator is not just another stick locator; it's a next-generation tool designed to make your utility locating tasks more efficient and accurate. Here's why:
Key Features
- Versatile Grip: Tailor your locating experience by choosing between a pistol-grip or vertical orientation.
- Optimized for Finding: Engineered specifically to locate a wide array of underground objects, making it a versatile tool in your utility locating arsenal.
- Audio Output: Experience real-time feedback with audio output that varies in frequency from 30 to 4000 Hz, depending on the signal strength.
- Depth Detection: Unparalleled in its capability to detect objects buried up to 18 feet deep.
- Low Battery Indicator: Never get caught off guard; the locator alerts you with a half-second audio beep every 13 seconds when the battery is low.
- Gain Levels: Customize your locating with five adjustable gain levels, designed to adapt to different locating conditions.
- Battery Life: Benefit from up to 24 hours of intermittent usage with just a single 9V battery.
- Warranty: 7 years
Technical Specifications
- Battery Life: Up to 24 hours of intermittent usage with a single 9V battery.
- Audio Output: Frequency range from 30 to 4000 Hz.
- Depth Detection: Up to 18 feet.
Underground Magnetic Locating
Feature / Specification Category | Details |
---|---|
Audio Output | 30 to 4000 Hz |
Depth Detection | Up to 18' deep (5.48 m) |
Low Battery Indicator | 1/2 second audio beep, every 13 seconds |
Gain Levels | 5 levels: Extra Low (1), Low (2), Medium (3), High (4), Extra High (5) |
Battery Life | 24 Hours (intermittent usage) |
Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
Overall Length | 42.3 in (107.4 cm) |
Weight | ~2.0 lbs (0.9 Kg) |
Water and Dust Protection | Rated IP54 |
- Schonstedt Spot Magnetic Locator
- Soft Carrying Case (p/n: 600044)
- One 9V Battery (in unit)
