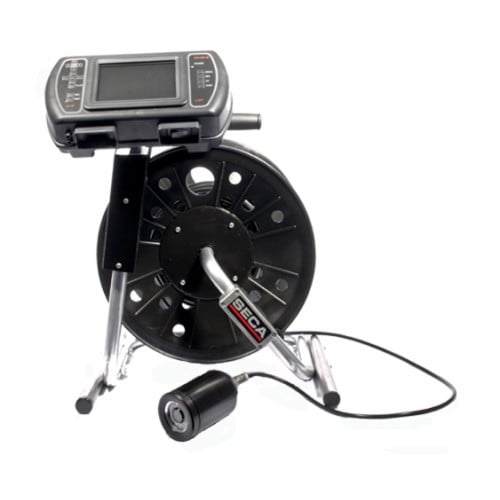

Dart Systems SECA Bore Hole & Drop Camera | 100m High-Resolution Inspection System

The Dart Systems SECA Bore Hole / Drop Camera is an industrial-grade solution for professional inspections in challenging vertical environments. Engineered for precision and portability, this system combines a compact 65mm diameter camera head with a rugged DS100 5" TFT Colour Monitor, providing crystal-clear black and white visuals for detailed diagnostic reporting.

What inspection depths are supported by the SECA drop camera?

This system offers exceptional flexibility with trailing cable options of 25m, 50m, 75m, and 100m mounted on an easy-carry reel. These various lengths allow operators to reach significant depths in bore holes and vertical ducts while maintaining full maneuverability and signal integrity.

How does the camera perform in low-light confined spaces?

The camera head is equipped with a wide 90° Field of View and integrated infrared (IR) illumination to ensure visibility in total darkness. This enables the capture of high-resolution images and video in deep pipes or underground structures where ambient light is unavailable.

What are the technical capabilities of the DS100 monitor?

The system utilizes a 5" TFT Colour Monitor that supports built-in SD card recording with a capacity of up to 32GB. This allows for seamless on-site documentation of both still images and video footage, stored directly in the ruggedized transit case for immediate review.
