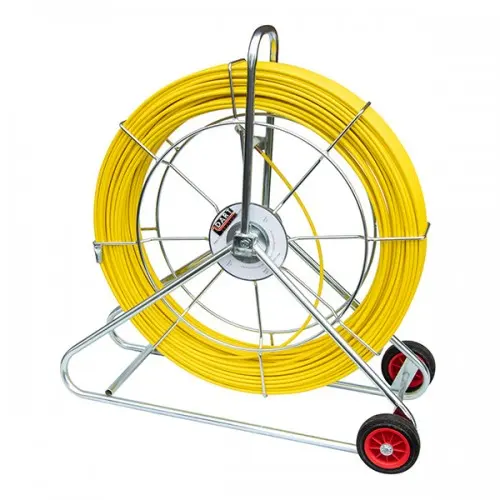

Dart Systems PipeDart 3L-9-120 | 9mm x 120m Large Frame Cobra Reel | Zinc-Plated Steel
You save £23.15 (5%)
The PipeDart 3L-9-120 by Dart Systems is a high-performance 9mm x 120-metre cobra reel engineered for industrial cable installation. Constructed with a zinc-plated steel frame and a radially reinforced fiberglass rod, it provides the lateral strength required for demanding ducting and pipe location tasks.
How does the 3L-9-120 enhance cable installation efficiency?
This system utilizes a 9mm x 120m fiberglass rod that provides a labour-saving solution for long-distance cable pulls in shopping malls and industrial facilities. The radially reinforced construction ensures maximum durability while maintaining the flexibility needed for conduit navigation.
What are the construction benefits of the zinc-plated steel frame?
The frame is fabricated from zinc-plated steel, offering a rugged and reliable housing that withstands harsh job site environments. It features a detachable cage design, which significantly simplifies transportation and storage for field technicians.
Can the 3L-9-120 be used for pipe location and blockage detection?
Yes, the PipeDart 3L-9-120 is specifically designed to support Sonde transmitters for precise pipe and blockage location. This makes it a versatile tool for utility surveying, capable of threading draw ropes or locating obstructions in ducts up to 120 metres.
| Manufacturer | Dart Systems |
| Model | 3L-9-120 |
| Rod Diameter | 9mm |
| Rod Length | 120m |
| Frame Material | Zinc-Plated Steel |
| Rod Material | Radially Reinforced Fiberglass |
| Cage Feature | Detachable Cage |
Compatible Accessories & Alternatives
- For shorter runs with the same rod diameter, consider the PipeDart Large Frame 3L-9-100.
- For smaller footprints, explore the PipeDart Compact Frame 3C-9-120.
- For comprehensive inspections, integrate this reel with the Dart DX HD Self-Levelling Camera System.
