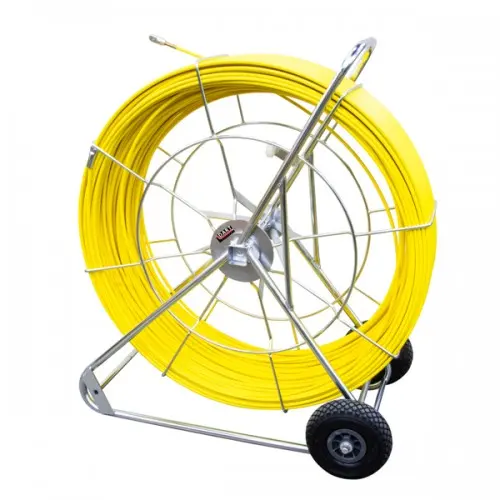

Dart Systems PipeDart 3L-14-500 | 14mm x 500m Cobra Reel | Large Frame Duct Rodder
What's in the Box
You save £77.75 (5%)
The PipeDart 3L-14-500 by Dart Systems is a professional-tier cable installation system engineered for expansive utility and telecommunications infrastructure. Built with a high-quality **14mm x 500-meter** radially reinforced fiberglass rod, this system provides the lateral strength and durability required for pushing through complex duct networks, threading draw ropes, or locating blockages in multi-storey industrial sites.
Other lengths in this range:
- PipeDart Large 3L-14 (14mm × 150m)
- PipeDart Large 3L-14 (14mm × 200m)
- PipeDart Large 3L-14 (14mm × 250m)
- PipeDart Large 3L-14 (14mm × 300m)
- PipeDart Large 3L-14 (14mm × 350m)
- PipeDart Large 3L-14 (14mm × 400m)
- PipeDart Large 3L-14 (14mm × 450m)
How does the 3L-14-500 improve cable installation efficiency?
The system is specifically designed for rapid deployment in large projects such as shopping centers and industrial complexes, utilizing a continuous **500-meter** rod to reduce the need for manual joins. Its construction provides a cost-effective alternative to traditional screw-together drain rods, ensuring high productivity and lower labor costs during rodding or cable pulling tasks.
What are the structural advantages of the Large Frame Cobra Reel?
This unit is constructed with a rugged **zinc-plated steel frame** that offers superior corrosion resistance and site durability. For added logistical convenience, the cage is fully **detachable**, allowing the frame to be handled and stored separately, which simplifies transportation across diverse job sites.
Is the PipeDart 3L-14-500 compatible with location electronics?
Yes, the 14mm fiberglass rod is designed to support the use of a **Sonde transmitter**, making it a versatile tool for locating pipes and identifying precise blockage points. Its **radially reinforced** core ensures that the rod maintains its integrity while navigating long distances within conduits.
| Rod Diameter | 14mm |
| Rod Length | 500 Metres |
| Frame Material | Zinc-plated Steel |
| Rod Material | Radially Reinforced Fiberglass |
| Frame Features | Large Frame with Detachable Cage |
| Primary Use | Ducting, Cable Pulling, and Pipe Location |
Accessories Section
- Integrate traceable functionality with the Dart Flexitrace 9mm x 200m for metallic line detection.
- For visual inspection of conduits before rodding, utilize the Dart DX Self-Levelling Drain Inspection Camera System.
- Enhance locating precision by attaching a compatible Sonde Transmitter to the 14mm rod tip.
