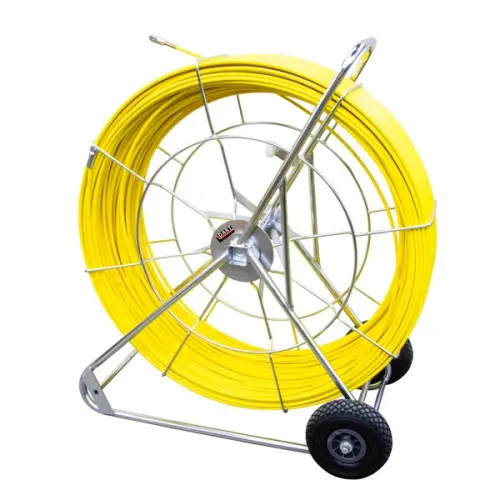

PipeDart 3L-14-400 Large Frame Cobra Reel | 14mm x 400m Duct Rodding System
You save £63.50 (5%)
The PipeDart Large Frame Cobra Reel 3L-14-400 is an industrial-grade 14mm x 400-meter rodding system engineered for high-efficiency cable installation in expansive ducts. This professional solution utilizes a radially reinforced fiberglass rod to provide superior lateral strength for pushing through shopping centers, multi-storey offices, and industrial complexes.
What are the primary applications for the 3L-14-400 Cobra Reel?
This system is specifically designed for rapid cable installation and threading draw ropes through long-distance underground pipes and ducts. It is also compatible with Sonde transmitters, making it a vital tool for precise pipe location and the identification of blockages.
How is the PipeDart Large Frame rodding system constructed for durability?
The unit features a rugged zinc-plated steel frame designed to withstand the rigours of professional job sites while maintaining reliable performance. The rod itself is constructed from high-quality radially reinforced fiberglass, ensuring it retains high lateral strength over its full 400-meter length.
Can the 3L-14-400 be used for utility location and site transport?
Yes, the system is designed to be lightweight relative to its size, facilitating easier transport across various worksites without sacrificing structural integrity. For enhanced portability and storage, the cage can be easily detached from the main frame, simplifying logistics for the operator.
| Manufacturer | Dart Systems |
| Model | 3L-14-400 |
| Rod Diameter | 14mm |
| Rod Length | 400 Metres |
| Rod Material | Radially Reinforced Fiberglass |
| Frame Material | Zinc-Plated Steel |
| Frame Construction | Large Frame with Detachable Cage |
| Functionality | Cable Pulling, Rodding, and Sonde Location |
