Radiodetection PCMx Locator with Rechargeable Kit

SKU: 10/PCMX-UK
In Stock
New

Radiodetection PCMx pipeline current mapping receiver with rechargeable kit and USB cable.

What's in the Box

  • Radiodetection PCMx receiver
  • USB cable
  • Rechargeable battery kit
Secure checkout

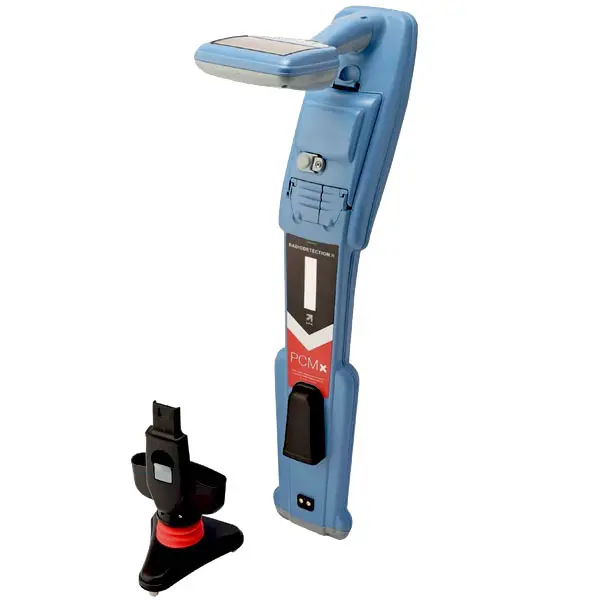

PCMx receiver for pipeline surveys

Radiodetection PCMx pipeline current mapping receiver with rechargeable kit and USB cable.

PCMx receiver, A-Frame, Tx-150PCM and Tx-25PCM
Radiodetection PCMx range. The image shows both transmitter versions; see the box contents for this offer.

What you can measure

Use the PCMx receiver with a PCM transmitter to trace the pipeline and compare mapping-current readings along the route. A change in readings helps the survey team decide where to investigate. The receiver records survey information alongside coordinates, and the companion PCM Manager tools help review the measurements after collection.

For compatible AC voltage gradient surveys, the PCM A-Frame helps narrow down the location of a coating defect or other fault. PCMx supports separate or simultaneous AC current attenuation and voltage-gradient surveys.

Match the transmitter to the survey

Choose this receiver package when you already have a compatible transmitter or want to specify the transmitter separately.

The Tx-25PCM is a portable rechargeable option rated to 1 A. The Tx-150PCM provides up to 3 A for longer transmission-pipeline work when the setup can support it.

With its magnetometer foot removed, the PCMx receiver can be used in its precision cable and pipe locating mode. For pipeline current mapping, use the magnetometer foot and a PCM transmitter that generates the dedicated mapping signal.

Key specifications

Mapping signal4 Hz from the compatible PCM transmitter
Transmitter rating3 A Tx-150PCM; 1 A Tx-25PCM
Fault investigationCompatible PCMx receiver and A-Frame
Data reviewPCM Manager companion tools

Questions about this model

Will a standard locating transmitter supply the pipeline mapping signal?

Use a dedicated PCM transmitter for the 4 Hz signal. A compatible standard locating transmitter can support other locating work.

What does the A-Frame add?

It helps pinpoint coating or insulation faults by measuring voltage gradients at the ground surface.

Which transmitter should I buy?

The Tx-25PCM suits portable distribution work. Choose the Tx-150PCM where the transmission survey calls for its higher available current.
