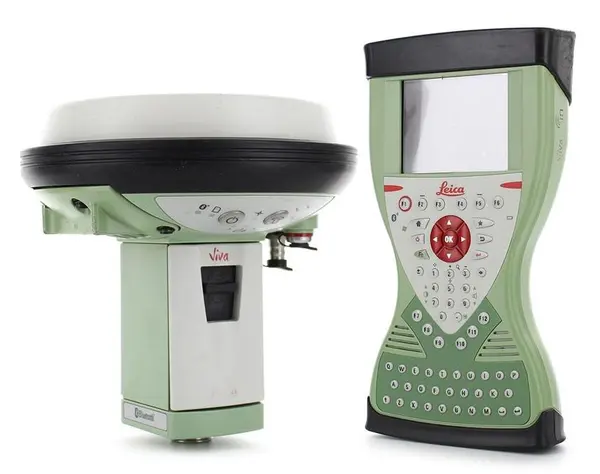

Leica GS15 GNSS RTK Base & Rover Receiver Set | Dual-Frequency Surveying | CS15 Field Controller
You save £2,400.00 (42%)
The Leica GS15 is a high-performance GNSS RTK receiver set designed for demanding surveying tasks, integrating advanced technologies like Leica SmartCheck for data verification and Leica SmartTrack for multi-constellation satellite tracking. This kit includes both a Base and Rover receiver paired with the rugged CS15 Field Controller, providing a scalable solution for accurate positioning in challenging environments. Built for durability, the GS15 is designed to handle extreme site conditions while maintaining a functional weight of only 3.30 kg for the complete standard RTK rover setup.
How does Leica SmartCheck ensure data reliability in the field?
Leica SmartCheck utilizes advanced RTK data-processing to continuously verify results, guaranteeing high-accuracy positioning even when tracking multiple constellations via SmartTrack. The Leica xRTK engine further enhances performance by delivering reliable positions in difficult environments like dense urban areas or thick canopy cover.
What environmental certifications make the Leica GS15 suitable for extreme conditions?
The Leica GS15 features a superior IP68 rating, protecting it against dust and continuous immersion in water up to 1.4 m depth. It is built to operate in extreme temperatures ranging from -40°C to +65°C, complying with ISO9022 and MIL-STD-810F standards for vibration and functional shock.
Which communication options are integrated into the GS15 and CS15 set?
This set includes Bluetooth v2.0, integrated 3G GSM/UMTS phone modems, and internal UHF radio transceivers operating within a 390-470 MHz bandwidth. The CS15 controller runs Windows CE 6.0 and features wireless Intenna technology to ensure flexible data handling and connectivity between the field and the office.
Technical Specification Table
| GNSS Receiver Model | Leica GS15 (Base & Rover) |
| Field Controller Model | Leica CS15 |
| Environmental Protection | IP68 (GS15) / IP67 (CS15) |
| Operating Temperature | -40°C to +65°C |
| Tracking Constellations | GPS & GLONASS (SmartTrack) |
| Weight (RTK Rover Setup) | 3.30 kg |
| Data Storage | 1 GB Removable SD Card |
| Recording Rate | Up to 20 Hz |
| UHF Radio Bandwidth | 390 – 470 MHz |
| Controller Processor | Freescale i.MX31 533 MHz ARM Core |
Accessories Section
- Power the GS15 and CS15 during long shifts with the Leica Li-ion Battery Pack.
- Extend your field communications range by utilizing the Leica RH15 Radio Handle.
- Ensure continuous power on site with the Leica Car Adapter Cable.
- For alternative entry-level RTK kits, see the Leica GS08 GNSS RTK Set.
