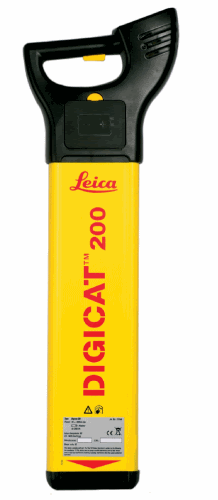

Leica Digicat 200 Refurbished Cable Locator | Integrated Depth Measurement
The refurbished Leica Digicat 200 is a high-performance cable and pipe location detector engineered under the Leica Geosystems "Safety First" philosophy. This tool is designed to operate with maximum reliability in potentially hazardous construction environments, offering advanced utility detection capabilities. Built on the proven architecture of previous Digisystem products, the Digicat 200 introduces real-time depth estimation to pinpoint the exact location and verticality of buried services.
How does the Leica Digicat 200 perform depth estimation?
When used in coordination with a signal generator in 33kHz mode, the unit provides a one-stop depth estimation from 0.3 to 3.0 meters. This system offers high-precision pinpointing with a depth accuracy of approximately ± 10%, enabling a full 3D location of buried utilities.
What are the environmental and durability standards for this locator?
Designed for the most adverse site conditions, the Digicat 200 features a rugged and lightweight construction rated to IP54 environmental standards. It remains fully operational in temperatures ranging from -20 to +50 degrees Celsius, ensuring reliability regardless of weather conditions.
Which detection modes are available on the Digicat 200?
The device includes passive POWER and RADIO modes to detect naturally occurring signals on buried services, as well as active tracing at 8kHz and 33kHz. These variable tracing frequencies allow operators to adjust for site-specific conditions, such as external interference from traffic loops or congested utility areas.
| Model | Digicat 200 (Refurbished) |
| Depth Measurement Range | 0.3m to 3.0m |
| Depth Accuracy | Approx. ± 10% |
| Operating Temperature | -20°C to +50°C |
| Protection Class | IP54 |
| Detection Modes | Power, Radio, 8kHz, 33kHz |
| Indicators | Visual and Audio |

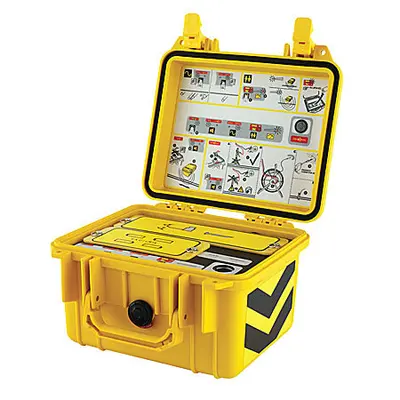

- For active signal generation, use the Refurbished Leica Digicat 8/33 Duel Frequency Generator.

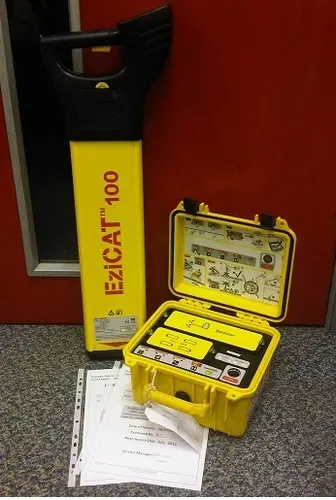

- Standard utility detection can also be supplemented with the Digicat 100 - Refurbished.
- Compatible with the DIGTRACE 30, 50, or 80 service tracer range for non-metallic utility detection.
