Dart DX Mini | Drain Inspection Camera System | 45m Self-Levelling Precision

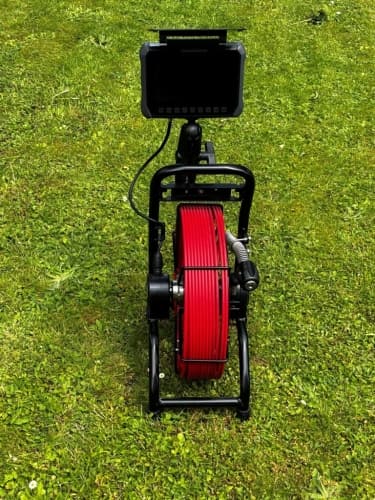

The Dart DX Mini Drain Inspection Camera System is a specialized tool engineered by Dart Systems Ltd for the detailed survey of pipes ranging from 38mm to 100mm. This 45-meter system is designed to navigate the complex geometries of internal plumbing, including P traps, toilet traps, and gulleys, while maintaining visual orientation through its self-levelling technology.

What are the navigation capabilities of the DX Mini camera head?

The system utilizes a 26mm self-levelling camera head with a compact 28mm length, specifically designed to traverse tight bends in small-diameter pipework. Its IP68 rating ensures reliable performance under pressures up to 10bar, making it suitable for submerged inspections in residential and industrial drains.

How does the DS7 monitor facilitate data management?

The DS7 monitor features a 7-inch TFT screen with 1024 x 600 resolution and a sunlight-readable display, recording high-quality footage in MPEG and JPEG formats. With integrated Wi-Fi and Bluetooth, professionals can record voice-over documentation and export inspection files directly to mobile devices or internal memory.

What location tracking features are integrated into the system?

For precise surface tracing, the DX Mini includes a selectable location sonde capable of transmitting at 33kHz, 512Hz, and 640Hz. This allows for accurate depth and position identification when paired with a compatible locator, while the 6.7mm diameter pushrod provides the necessary rigidity for the full 45-meter deployment.
