Dart DX Mini | 30m Drain Inspection Camera System | 26mm Self-Levelling Head
SKU
569-951
Special Price £3,990.00 £3,325.00 as"" £4,200.00 £3,500.00
In stock
The Dart DX Mini is a high-performance drain inspection system engineered for pipes ranging from 38mm to 100mm. It features a 26mm self-levelling camera head and a sunlight-readable DS7 monitor with integrated Wi-Fi and Bluetooth for professional reporting.

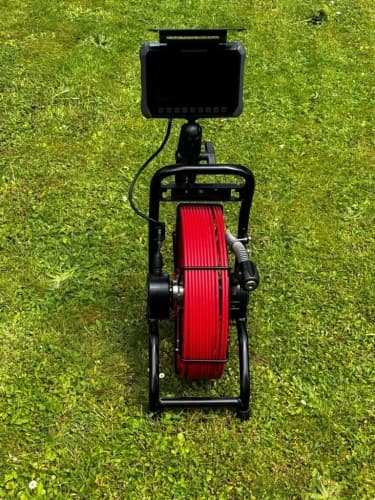

The Dart DX Mini Drain Inspection Camera System is a specialized diagnostic tool designed by Dart Systems Ltd for the rigorous inspection of pipes between 38mm and 100mm. This system combines a robust 6.7mm diameter push rod with a high-resolution 26mm self-levelling camera head, ensuring upright visuals even through tight bends, P-traps, and toilet gulleys. The portable 9kg frame is zinc-plated and powder-coated for durability in industrial environments.
Which pipe diameters can the Dart DX Mini inspect?
This system is optimized for small to medium-bore plumbing, effectively navigating pipes from 38mm to 100mm. Its 26mm self-levelling camera head is specifically designed to maintain orientation while traversing complex pipe geometries like P-traps and gulleys.
What are the recording and connectivity capabilities of the DS7 monitor?
The DS7 monitor features a 7-inch TFT sunlight-readable screen with 1024 x 600 resolution and records footage in MPEG/JPEG formats to internal memory, Micro SD, or USB. It includes Wi-Fi for mobile file exporting and Bluetooth for adding voice annotations directly to video documentation.
How does the selectable sonde assist in utility location?
The system is equipped with a selectable frequency location sonde capable of operating at 33kHz, 512Hz, or 640Hz. This allows operators to use a precision locator to pinpoint the exact depth and position of the camera head during underground inspections.
| Camera Head Diameter | 26mm (Self-Levelling) |
| Pipe Capacity | 38mm to 100mm |
| Rod Length / Diameter | 30 Meters / 6.7mm |
| Monitor | 7" TFT Sunlight Readable (1024 x 600) |
| Sonde Frequencies | 33kHz, 512Hz, 640Hz |
| Battery Life | Up to 5 Hours (Lithium-ion) |
| Environmental Rating | IP68 Camera (10bar), IP54 Monitor |
| Weight | 9kg |
Compatible Accessories & Systems
- Extend your reach with the Dart DX Mini 45 Meters version for longer utility runs.
- Integrate with the full-scale Dart DX Self-Levelling Drain Inspection Camera System for comprehensive site reporting.
- For specialized small-bore work, consider the Mini DartEye S/L inspection system.
| Condition | new |
|---|
