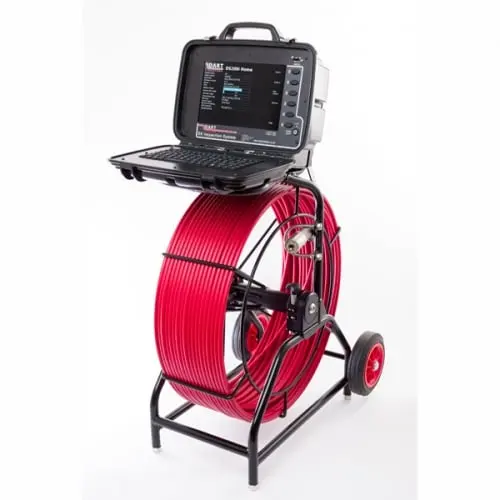

Dart DX HD | Self-Levelling Drain Inspection Camera | 10.1" HD Display

SKU
569-DX-HD
Dart Systems
Special Price £7,404.30 £6,170.25 as"" £7,794.00 £6,495.00
In stock

The Dart DX HD is a modular drain inspection camera system designed for pipes ranging from 2" to 12" (50mm-300mm). It features a 10.1" sunlight-readable TFT HD display and self-levelling technology for precise vertical diagnostics.

The Dart DX HD is a professional-grade, modular diagnostic solution engineered for inspecting pipes between 2" and 12" (50mm-300mm). It integrates a 10.1" sunlight-readable TFT HD display with a resolution of 1280 x 800, protected by a Gorilla Glass Front Panel for maximum field durability in municipal and industrial environments.

How does self-levelling technology improve drain inspections?

The state-of-the-art self-levelling camera head automatically adjusts its orientation to provide a consistently upright view, eliminating disorienting tilted images during navigation. This ensures precise diagnostics and high-quality visuals across residential and commercial applications.

What are the recording and data storage capabilities of the Dart DX?

The system features 128GB of internal memory and includes a USB stick for USB 3.0 recording and built-in WiFi for seamless data transfer. Users can generate comprehensive reports on-site using the Dart Full Reporting Software, adding high-quality images and video observations without closing the report between inspections.

Which pipe diameters and cable lengths are compatible with this system?

Designed for versatile use, the DX HD supports pipe diameters from 2" to 12" (50mm-300mm) and offers cable length options of 40m, 60m, 80m, and 120m. It also features a high-power 3 Frequency Sonde (512Hz, 640Hz, and 33kHz) for compatibility with various locating equipment.
Pipe Range2" to 12" (50mm-300mm)
Display10.1" TFT HD (1280 x 800)
Storage128GB Internal + USB 3.0
Sonde Frequencies512Hz, 640Hz, 33kHz
Front PanelGorilla Glass
Software CompatibilityWinCan, Viewline, Dart Reporting
Conditionnew
Package Contents

Depending which option you choose:

  • 569-920: 40m DX HD Inspection Camera
  • 569-921: 60m DX HD Inspection Camera
  • 569-922: 80m DX HD Inspection Camera
  • 569-923: 120m DX HD Inspection Camera
  • DX HD Self-Levelling Drain Inspection Camera System (length as above), Detachable Monitor with Gorilla Glass Front Panel, Dart Full Reporting Software, USB Memory Stick, User Manual, Warranty Card
