DS100 Telescopic Pole Camera 2.5mtr

The new SECA DS100 Telescopic Pole Camera System is a portable rugged inspection system designed for the Border Agencies, Security Industry, Utilities and Emergency Services.



The DS100 can be a Pole mounted or free-standing system allowing the operator complete flexibility of movement whilst carrying out searches or surveillance.  The Battery pack provides up to 8 hours of constant use and multiple packs can be carried for continual shift work.



The Infra Red Camera provides clear high resolution colour images in daylight and switches to infra red in low light to provide clear black and white images at distances up to 50ft.  The camera is mounted on a telescopic pole with a collapsed length of 0.85 mtrs and extends up to 2.5 Mtrs allowing surveillance without having to worry about working at heights regulations or moving obstacles. (Telescopic Pole extendable to 18' is available on request)

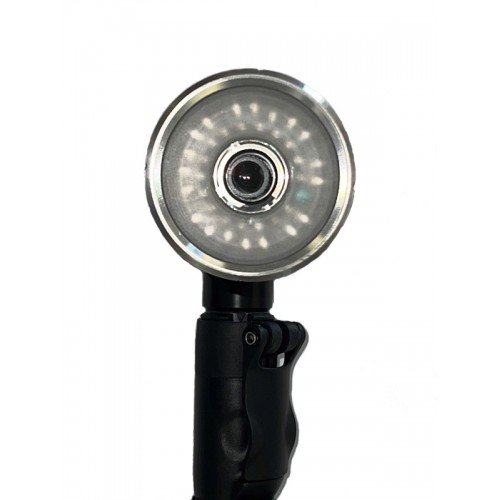

The camera head is fitted with a unique friction joint allowing the head to be articulated between 0° and 110°.  Articulation can be achieved manually by adjusting the camera head against the friction joint to the desired angle.  Articulation can also be achieved by placing the camera head against a fixed object and pushing or pulling the head to the desired angle.  This is a real benefit when carrying out room/container searches as the camera doesn't need to be collapsed to carry out a full search.



The monitor has an SD Card slot for capturing Video and Still Images for evidentiary use. The system comes complete with an SD Card and will take a maximum of 32GB card.

Camera Field of View - 90º



The kit is packed in a rugged shoulder bag and hard case for easy transportation and deployment.



• Security Surveillance - Viewing the tops of Articulated Lorries for activity at night, Under vehicle searches (with optional search trolley), Inspection of lorries / sea containers for hideaways, or mis-described loads.

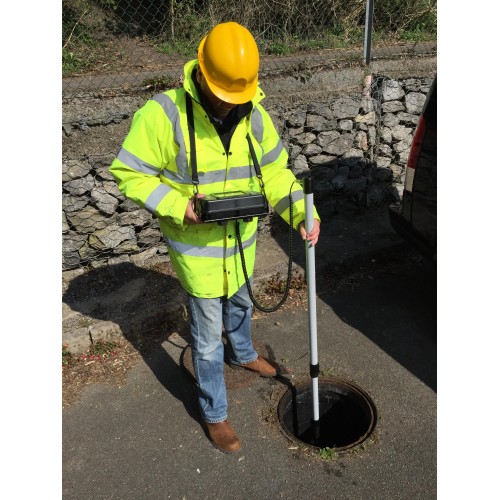

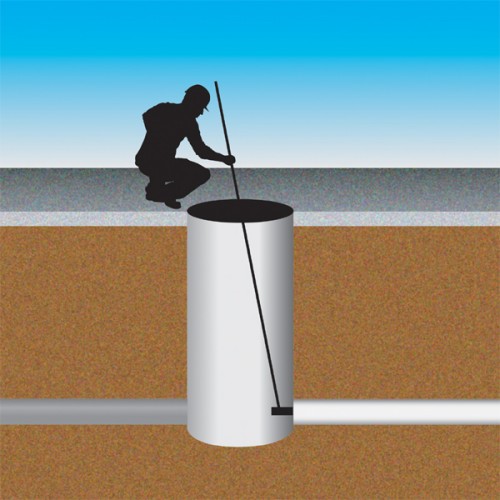

• Utilities - Man Hole/Drain Inspection before descending or deploying fall arrest gear.  Site and height inspections can be carried out from ground level.
• Emergency Services - Collapsed Building Inspection and safety checks, Covert Surveillance, Tactical Team Observation System.



Package Contents:
