Witson Deep Underwater Borehole Inspection Camera System

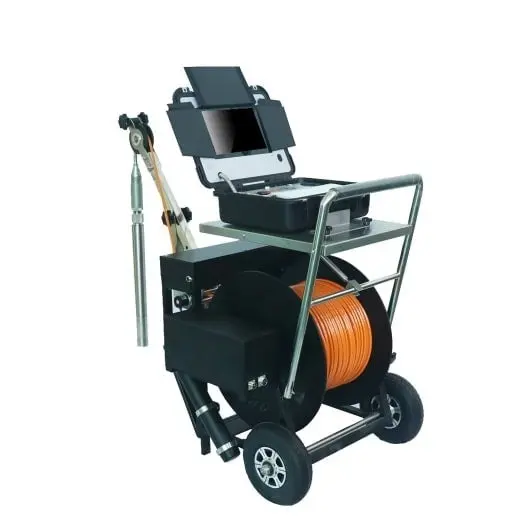

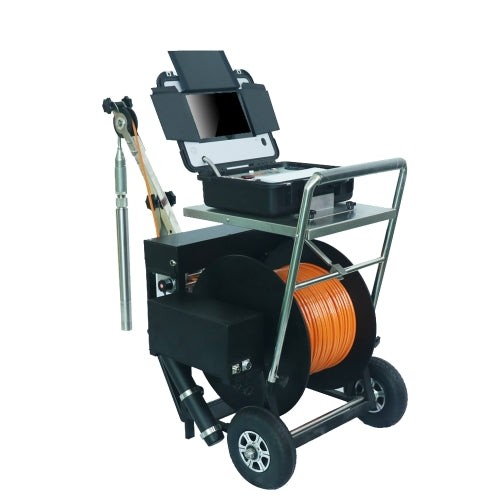

The Witson borehole camera provides downward and rotating side views for deep vertical inspections. A powered winch deploys the selected 300m, 400m or 500m cable.
The Witson borehole camera provides downward and rotating side views for deep vertical inspections. A powered winch deploys the selected 300m, 400m or 500m cable.
Specifications
| Camera head | 45mm dual view; downward and side cameras |
|---|---|
| Side view | Continuous 360-degree rotation; manual focus |
| Imaging | 720p, 1.3 megapixel |
| Head rating | IP68; 50 bar |
| Cable | 8mm Kevlar cable; 300m, 400m or 500m |
| Winch | Powered winding with adjustable speed |
| Measurements | Depth encoder, compass and temperature |
| Display | 13-inch LCD; 1280 x 720 pixels |
| Recording | 128GB internal storage; USB backup |
| Lighting | 6 downward and 6 side LEDs |
Choosing this system
Choose cable length using the product options. Cable length is not an unconditional operating-depth guarantee: confirm pressure, water conditions and the deployment requirements with us. This is a substantial winch-based system, not a portable drain push camera; freight and lead time require confirmation.
Compare Rausch drain cameras and Witson inspection cameras, or contact us to confirm the right equipment and configuration.
