Dart Systems Mini DartEye S/L | 30m Drain Inspection Camera Hire | Self-Leveling Precision

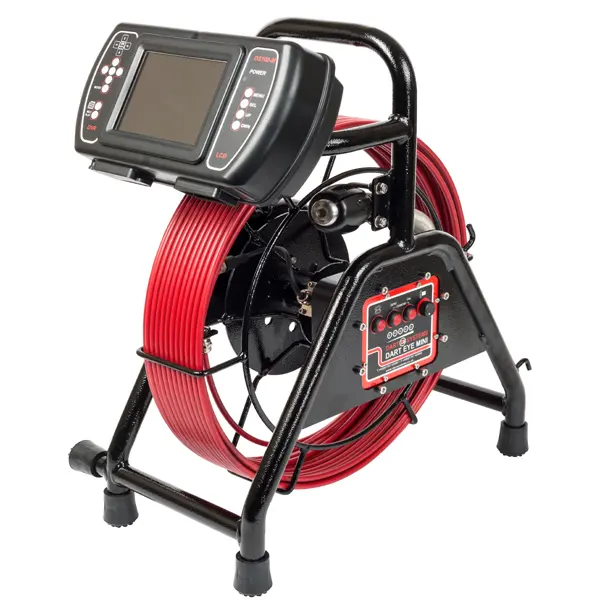

The Mini DartEye is a compact yet powerful drain inspection system designed for professional diagnostic performance in pipes from 1 1/2" (38mm) to 4" (100mm). This robust system features a 26mm self-leveling camera head crafted from stainless steel with a high-impact Sapphire Lens, providing consistently upright visuals even in complex pipe configurations.

What pipe diameters is the Mini DartEye compatible with?

This system is specifically engineered for efficient inspection of pipes ranging from 38mm (1 1/2") to 100mm (4") in diameter. Its versatile frame design allows the unit to operate effectively whether standing upright or laid flat to suit the site environment.

How does the self-leveling camera head function?

The 26mm diameter camera head automatically adjusts its orientation to provide the operator with consistently clear and upright images on the display. This eliminates visual disorientation during transit through pipe bends and is supported by six ultra-bright adjustable LEDs for optimal lighting.

What are the technical storage and display specifications?

The system utilizes a DS100 Monitor with a 5" TFT LCD Screen, which is protected by a 5mm Polycarbonate cover. Captured footage is recorded directly to a 32GB SD card, and the unit includes a 7-hour Lithium-Ion battery for extended field use.

• Standard purchase options for the Mini DartEye S/L Drain Inspection Camera System are available for long-term fleet requirements.
• For additional tracing capabilities, this system is compatible with the Dart Flexitrace 9mm x 50m Pipe Tracer System.
• Pair with the Dart DS100 Telescopic Pole Camera 2.5mtr for high-level or restricted access inspections.
• Replacement reels such as the PipeDart Mini Frame Cobra Reel 202-30M are available for maintenance.
