Dart Systems 563-100 | Cavity Inspection Camera Kit | 90-Degree Side View
SKU
563-100
Special Price £948.00 £790.00 as"" £1,104.00 £920.00
In stock

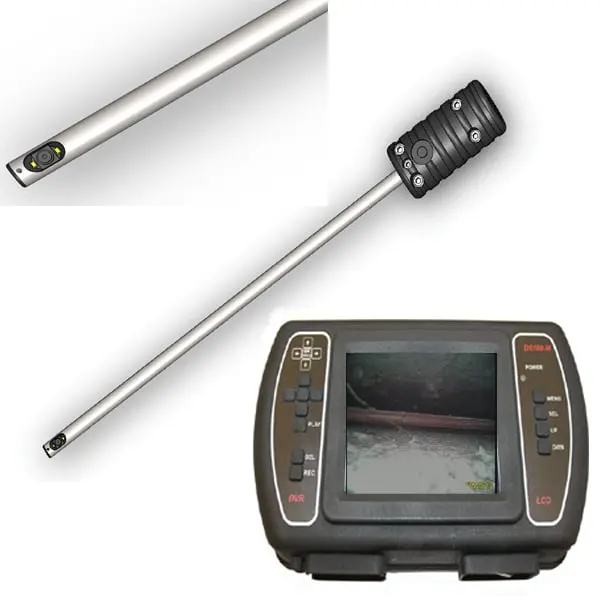

A high-specification cavity inspection system featuring a 5-inch high-resolution anti-glare LCD and a specialized 90° viewing probe. Ideal for structural wall tie assessments and pest control through entry points as small as 10mm.
The Dart Cavity Inspection Camera (563-100) is a high-specification solution designed for professionals performing structural, dry rot, and pest control assessments. By replacing traditional optical systems with a digital 5" LCD high-resolution screen, this kit ensures superior clarity and operator safety during complex inspections. The system is engineered to illuminate the darkest voids with high-intensity LED technology and provide precise side-viewing angles via its dedicated probe.
How does the 90° viewing probe improve cavity assessments?
The 90° viewing probe is specifically engineered to inspect cavity wall ties and other intricate structural details that are impossible to view with straight-line endoscopes. This side-view capability ensures that every detail within the cavity is captured, allowing for thorough integrity checks and insulation assessments.
What are the entry point requirements for this inspection kit?
This versatile system offers two primary insertion options: the camera probe can pass through 12.5mm drilled holes when using the provided insertion tube, or through 10mm diameter holes without the tube. This flexibility makes it the ideal tool for high-precision work in tight spaces or delicate brickwork.
How effective is the lighting system in deep cavities?
The system utilizes high-intensity LED lighting capable of illuminating distances up to 1.5m depending on the cavity depth. This ensures high-quality video and still capture even in complete darkness, which is essential for identifying dry rot infestations or structural anomalies.
| Display | 5" LCD High-Resolution with Anti-Glare Coating |
| Viewing Angle | 90° Side View Probe |
| Illumination | High-Intensity LED (up to 1.5m range) |
| Minimum Entry (With Tube) | 12.5mm |
| Minimum Entry (Without Tube) | 10mm |
| Primary Applications | Cavity Wall Ties, Pest Control, Boat Surveys, Container Security |
Compatible Dart Systems Accessories
- For general drain surveys, pair this kit with the Dart DX Self-Levelling Drain Inspection Camera System.
- Extend your reach for high-level inspections with the Dart DS100 Telescopic Pole Camera 2.5mtr.
- For smaller pipe diameters, consider the Dart Drain 12mm x 20m Fixed Drain Inspection Camera System.
| Condition | new |
|---|---|
| Package Contents |
|
