C.Scope Connection Magnet | Signal Transmitter Accessory | Direct Utility Attachment

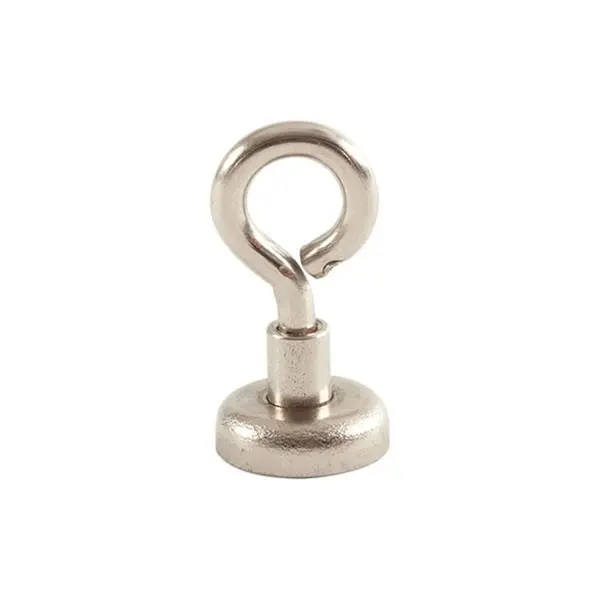

The C.Scope Connection Magnet is a precision-engineered accessory designed to establish a stable electrical pathway between a signal generator and various metallic utility infrastructures. This component is essential for operators needing to apply a tracing signal to cast iron pipes, steel valves, or metallic street furniture where standard clamps are impractical.
How does the C.Scope Connection Magnet improve utility locating?
It enables a secure magnetic bond to any ferrous surface, ensuring that the signal from the transmitter is injected directly into the target line. This method reduces signal loss compared to air induction and provides a stable connection even on irregularly shaped metallic objects.
Which signal generators are compatible with this connection magnet?
This accessory is specifically manufactured for compatibility with the SGA3, SGA4, SGV4, and MXT4 transmitters. Using the correct manufacturer-matched magnet ensures optimal signal transfer and protects the transmitter’s internal circuitry.
Where is the magnetic connection most effective?
The connection magnet is most effective on cast iron pipes, steel cabinets, and street lighting columns. It provides a high-strength attachment that allows for hands-free operation while the operator performs cable or pipe tracing tasks.
Technical Specification Table
| SKU | H2466 |
| Manufacturer | C.Scope |
| Compatible Transmitters | SGA3, SGA4, SGV4, MXT4 |
| Primary Material | High-strength Ferrous Magnet |
| Connection Type | Magnetic Surface Interface |
