C.Scope B4020A | Auxiliary 10m Earth Lead | Enhanced Signal Grounding

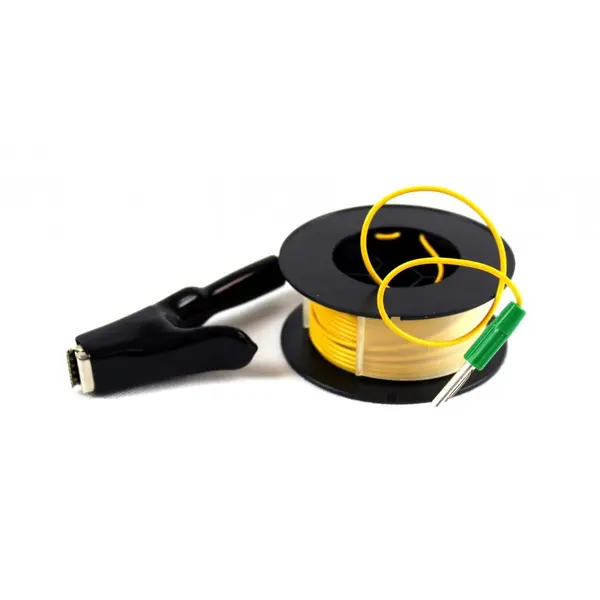

The C.Scope B4020A Auxiliary Earth Lead is a high-performance 10-metre extension designed to facilitate reliable grounding for professional cable avoidance and precision locating. By providing a 10-metre length, this lead allows operators to establish a high-quality earth connection even when the immediate vicinity of the signal generator lacks suitable ground conditions, thereby improving the clarity of the traced signal.

What is the purpose of the C.Scope 10m Auxiliary Earth Lead?

The primary purpose of this lead is to extend the grounding reach of C.Scope transmitters, ensuring a robust return path for the electrical signal. Establishing an effective earth connection is critical for maximizing the signal strength induced onto underground utilities, which directly enhances detection depth and accuracy.

Which signal generators are compatible with the B4020A earth lead?

The B4020A is specifically engineered to integrate with the SGA3, SGA4, SGV4, and MXT4 signal transmitters. These leads are manufactured to professional standards to ensure compatibility and reliable electrical contact with all compatible C.Scope equipment.

How does an auxiliary earth lead improve cable locating accuracy?

Using an auxiliary lead allows the operator to place the earth stake in optimal soil conditions, which may be up to 10 metres away from the signal generator. This flexibility reduces signal distortion and ensures the signal is primarily directed onto the target utility rather than dissipating through poor local grounding.

Compatible Accessories

• C.Scope SGA3 Signal Generator
• C.Scope SGA4 Signal Generator
• C.Scope SGV4 Signal Generator
• C.Scope MXT4 Transmitter
• C.Scope Earth Stake
