Dart Flexitrace 9mm x 50m | Pipe & Duct Tracer System | 33kHz Compatible
SKU
309-50
Special Price £669.18 £557.65 as"" £704.40 £587.00
In stock
The Dart Flexitrace is a professional 9mm x 50m tracing system designed for the precise location and depth determination of non-metallic pipes and ducts. It provides a compact, one-person solution for detecting obstructions or mapping entire conduit paths when used with a 33kHz signal generator.

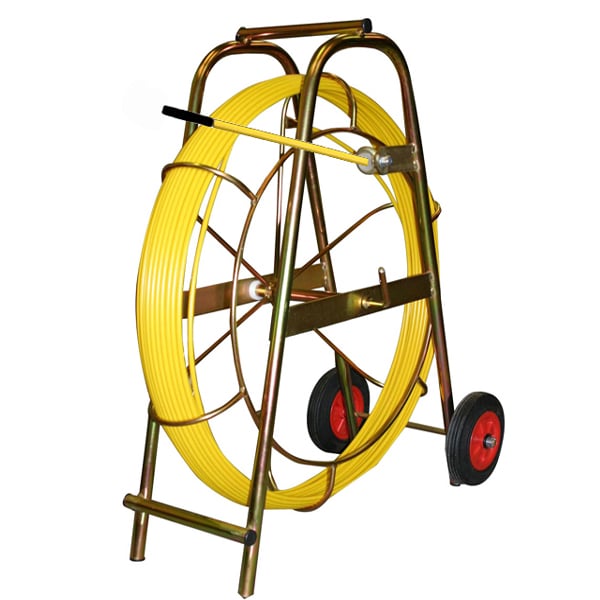

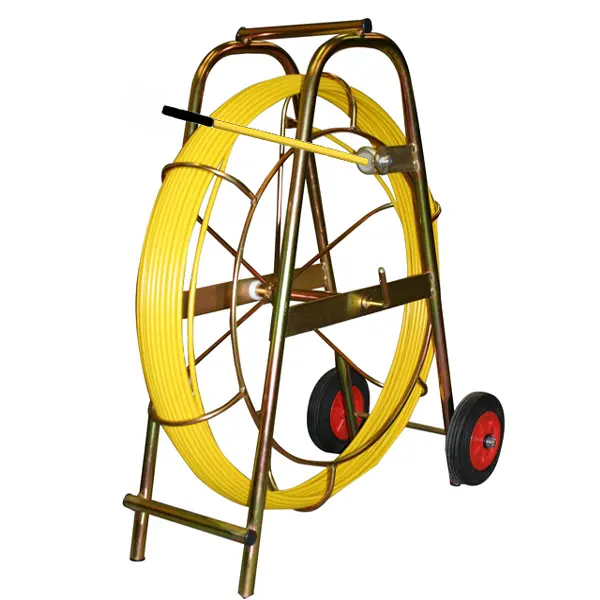

The **Dart Flexitrace 9mm x 50m** is a specialized pipe and duct tracing system that serves as a lightweight alternative to traditional cobra rods and sonde transmitters. Constructed from a high-strength **glass fibre rod** with integrated **copper conductors** and a durable **polypropylene sheath**, this unit is housed in a robust steel frame equipped with a manual brake for controlled deployment. It is specifically engineered to locate buried non-metallic pipes and ducts with diameters as small as **15 mm**.
How does the Dart Flexitrace facilitate pipe and duct location?
This system allows for both **Sonde Location** to identify specific blockages and **Line Location** to map the entire length of the pipe. By energizing the end coil housing or the full rod length with a compatible **33kHz** signal generator, operators can determine the path and depth of non-metallic utilities up to **3 meters** deep.
What are the primary technical specifications of this 50m Flexitrace system?
The unit features a **9mm rod diameter** and a compact **12mm x 70mm sonde**, making it suitable for tight environments. The entire assembly is mounted on a steel frame measuring **950mm x 820mm x 400mm**, ensuring portability for a single operator without the need for external batteries.
Can this system be used with standard cable avoiding tools?
Yes, the Dart Flexitrace is fully compatible with any **standard Signal Generator and C.A.T.** (Cable Avoiding Tool) that operates at the industry-standard **33kHz** frequency. It connects directly to the generator terminals to energize the internal copper conductors, allowing the locator to pick up the signal through soil and pipe walls.
| Product Attribute | Specification |
| SKU | 309-50 |
| Rod Diameter | 9mm |
| Rod Length | 50m |
| Sonde Dimensions | 12mm Dia x 70mm |
| Maximum Depth Range | Up to 3 Meters |
| Construction Materials | Glass Fibre, Copper, Polypropylene, Steel |
| Frame Dimensions | 950mm x 820mm x 400mm |
| Operating Frequency | 33kHz |
| Warranty | 12 Months |
Recommended Compatible Accessories:
- For visual inspection after location, utilize the Dart DX Self-Levelling Drain Inspection Camera System.
- For smaller diameter tracing tasks, consider the Dart Flexitrace 6mm x 50m Pipe Tracer System.
- For heavy-duty conduit rodding without tracing capabilities, the PipeDart Compact Frame Cobra Reel 3C-9-50 is a suitable alternative.
- Deploy the Mini DartEye S/L Drain Inspection Camera System for high-resolution imaging in restricted pipes.
| Condition | new |
|---|
