Dart Flexitrace 309-200 | 9mm x 200m Pipe Tracer System | 3M Depth Sonde Mapping

The Dart Flexitrace 9mm x 200m Pipe Tracer System provides a lightweight and compact solution for locating buried non-metallic ducts, pipes, and drains. Designed for deployment by a single operator, this unit serves as a high-efficiency alternative to traditional sonde techniques by allowing the user to trace the entire path of a pipeline or pinpoint specific collapses and obstructions in pipes with diameters as small as 15 mm.

How does the 33kHz Sonde mapping function work?

By connecting a signal generator to both terminals of the unit, the internal 12mm x 70mm end coil is energized, functioning as a traditional sonde for precision tip location. This allows users to accurately determine the point of obstruction using any standard Cable Avoiding Tool operating at 33kHz.

What are the material specifications for the Flexitrace rod?

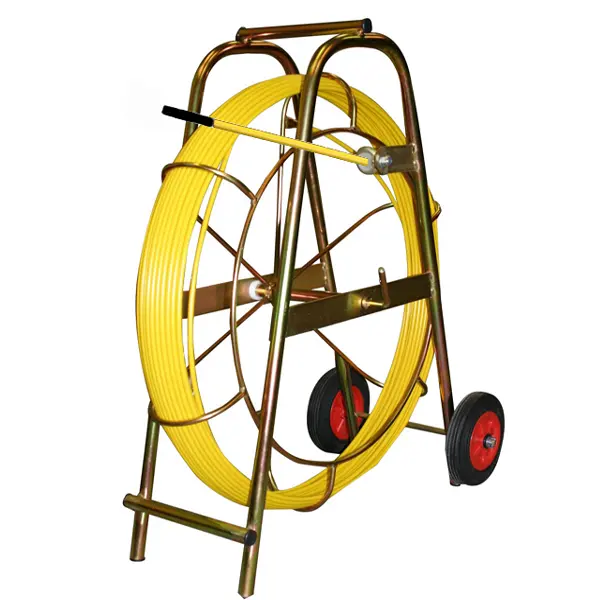

The system features a 9mm diameter rod constructed from high-tensile glass fibre with internal copper conductors and a protective polypropylene sheath. The entire assembly is mounted on a rugged 950mm x 820mm x 400mm steel frame fitted with a manual brake for controlled deployment.

Can this system determine the depth of non-metallic pipes?

Yes, the Flexitrace allows for the detection, location, and determination of depth for buried non-metallic infrastructure up to 3 meters deep. This range is subject to pipe construction and specific soil conditions encountered during the survey.

• For shorter runs in similar environments, consider the Dart Flexitrace 9mm x 150m Pipe Tracer System.
• If mapping smaller diameter utility ducts, the Dart Flexitrace 9mm x 120m Pipe Tracer System is also available.
• For high-capacity rodding without integral trace elements, view the PipeDart Large Frame Cobra Reel 3L-9-200.
• Compact mapping solutions include the Dart Flexitrace 9mm x 50m Pipe Tracer System.
