Dart Flexitrace 9mm x 100m | Pipe Tracer System | 3m Depth Detection
You save £34.40 (5%)

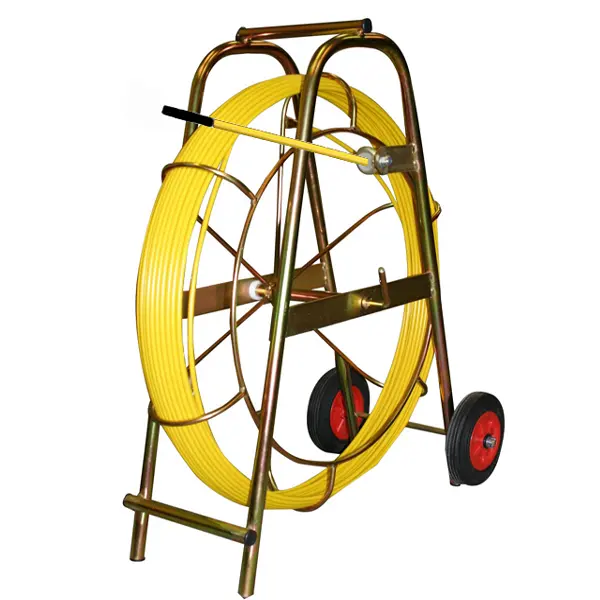

The Dart Flexitrace 9mm x 100m Pipe Tracer System provides a professional solution for the detection and depth determination of buried non-metallic utilities. Constructed from a durable 9mm glass fibre rod with integrated copper conductors, the unit is housed on a robust steel frame and features a manual brake to maintain rod control during deployment. It is effective in pipes and ducts with diameters as small as 15mm.
How does the Sonde Location mode work?
In Sonde Location mode, the signal generator is attached to both terminals of the unit to energize the 12mm x 70mm end coil housing. This allows the tip of the rod to be located as a traditional sonde using a 33kHz compatible cable locator.
What are the rod and frame specifications?
The system features a 100m length rod with a 9mm diameter, encased in a polypropylene sheath on a steel frame measuring 950mm x 820mm x 400mm. It is lightweight and compact enough for one-person transport and operation.
Can this system locate non-metallic pipe paths?
Yes, by connecting the signal generator to one terminal and an earth stake to the other, the rod can be located along its entire 100m length. This Line Location mode allows operators to map the full path of a non-metallic duct or pipe.
| Rod Diameter | 9mm |
| Rod Length | 100m |
| Sonde Dimensions | 12mm Dia x 70mm |
| Operating Frequency | 33kHz |
| Depth Range | Up to 3 Mtr |
| Frame Dimensions | 950mm x 820mm x 400mm |
| Rod Material | Glass Fibre with copper conductors |
| Warranty | 12 Months |
- Use the Dart DX Self-Levelling Drain Inspection Camera System to visually inspect obstructions located by the Flexitrace.
- For shorter tracing requirements, consider the Dart Flexitrace 9mm x 50m Pipe Tracer System.
- Ensure technical compatibility by using the system with a Cable Avoiding Tool or compatible Signal Generator.
- For heavy-duty rodding without tracing, see the PipeDart Mini Frame Cobra Reel.
