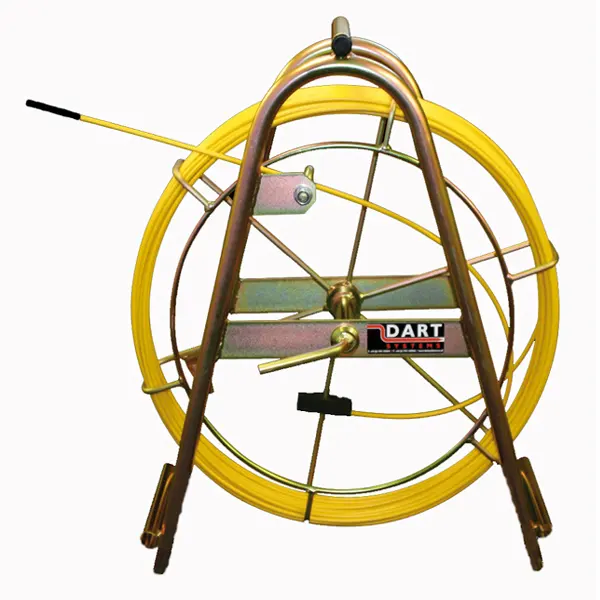

Dart Flexitrace 6mm x 150m | Non-Metallic Pipe Tracer | 33kHz Sonde System

The Dart Flexitrace 6mm x 150m provides a lightweight and compact professional solution for the precise location of non-metallic ducts, pipes, and drains. This unit acts as a versatile alternative to traditional Sonde transmitters, enabling one person to easily transport and deploy the system to identify collapses or obstructions in conduits with diameters as small as 12mm. Designed for use with any 33kHz compatible cable locator and signal generator, it offers both localized and full-length tracking capabilities.

How does the Flexitrace perform sonde and line location?

For Sonde Location, the signal generator is connected to both terminals to energize the 9mm x 75mm end coil housing, allowing for localized tip detection. For Line Location, one terminal connects to the generator while the other connects to an earth stake, energizing the 150m length for full path mapping.

What are the technical advantages of the 6mm glass fibre rod?

The rod is constructed from high-quality Glass Fibre with copper conductors and a protective polypropylene sheath for durability. This construction allows for a maximum depth range of 3 Mtr, depending on soil conditions and pipe construction, while the manual brake on the frame maintains total rod control.

Is this system compatible with standard utility locators?

Yes, the system is engineered to be fully compatible with any locator or generator operating at 33kHz. It requires no batteries for operation, as it relies on the signal output from the connected transmitter to energize the rod or sonde end.

Technical Specifications Summarized
