Dart Flexitrace 4.5mm x 80m | Pipe and Duct Tracer | 3m Depth Capacity

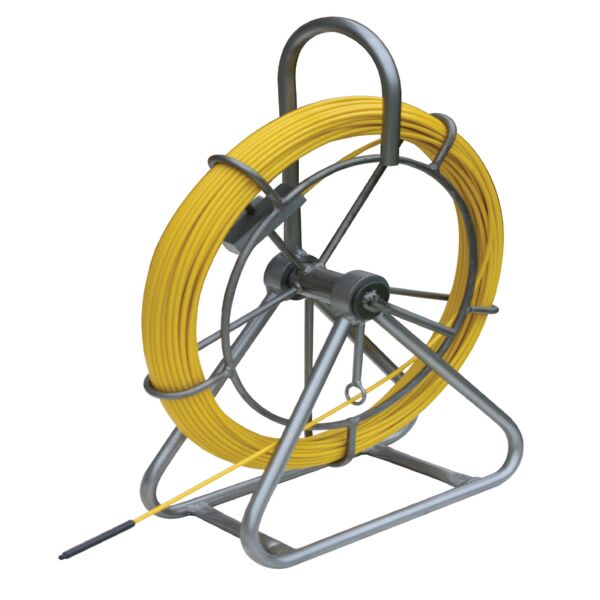

The Dart Flexitrace 4.5mm x 80m system offers a high-performance, lightweight solution for surveyors and utility contractors needing to trace non-conductive pipes, drains, and ducts. Constructed with a glass fibre rod and copper conductors protected by a polypropylene sheath, this system allows for the transmission of a signal along its entire length or at the tip. It is specifically engineered to operate in confined spaces, capable of navigating pipes with a diameter as small as 12mm.

Also available: Dart Flexitrace 4.5mm × 50m.

How does the Dart Flexitrace locate non-metallic pipes?

The system utilizes dual-mode tracing; for line location, the rod is energized along its full 80m length using a 33kHz signal generator and an earth stake. For end-point detection, the signal is concentrated at the 9mm x 75mm sonde housing at the tip of the rod, allowing for precise pinpointing of blockages or collapses.

What are the primary depth and signal requirements for this tracer?

The Dart Flexitrace is designed for accuracy at depths of up to 3 meters, though this may vary depending on soil density and pipe construction. It is fully compatible with any standard cable locator and signal generator operating at 33kHz, though users should note restrictions on transmitters with outputs of 5 watts or higher.

What physical safety and control features are included?

The unit is housed in a robust steel frame measuring 540mm x 400mm x 150mm and features a manual brake to maintain control of the rod during deployment. Because it relies on the signal generator for power, there are no batteries required for the rod itself, ensuring it is always ready for field use.

• Pair this system with a Dart Signal Generator or the C.A.T (Cable Avoiding Tool) for full functionality.
• Verify pipe conditions with the Dart DX Self-Levelling Drain Inspection Camera System.
• For non-traceable heavy-duty applications, see the PipeDart Mini Frame Cobra Reel 4.5mm x 80 metre.
